US18650VTC5A
Sony | Murata US18650VTC5A 2600mAh 35A High Drain Li-Ion Battery
SONY US18650VTC5A RECHARGEABLE BATTERY 3,6V 2600mAh MURATA 18650 Li-ion 2018 NEW | eBay

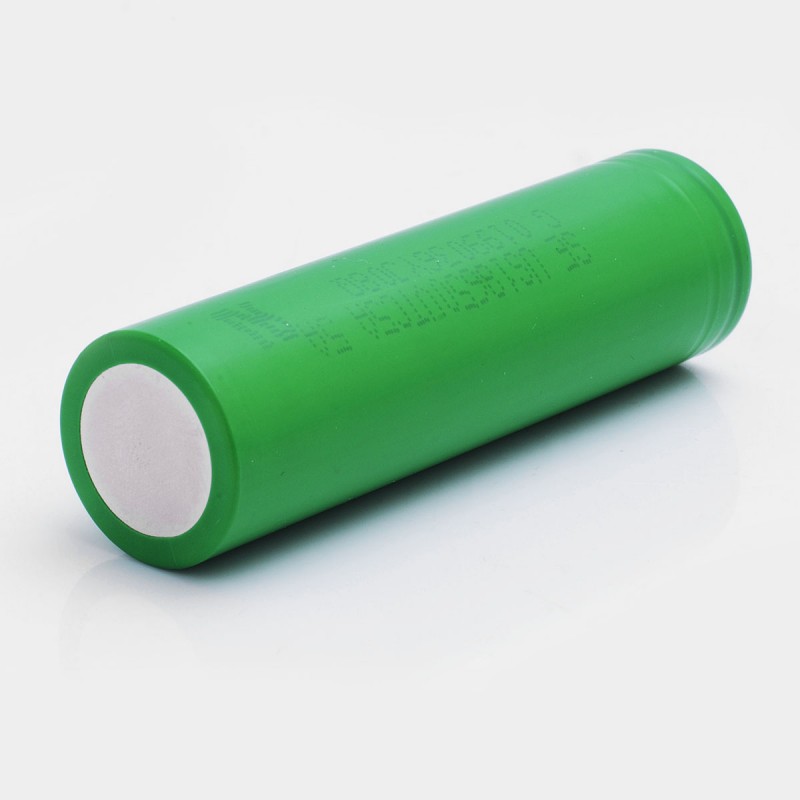

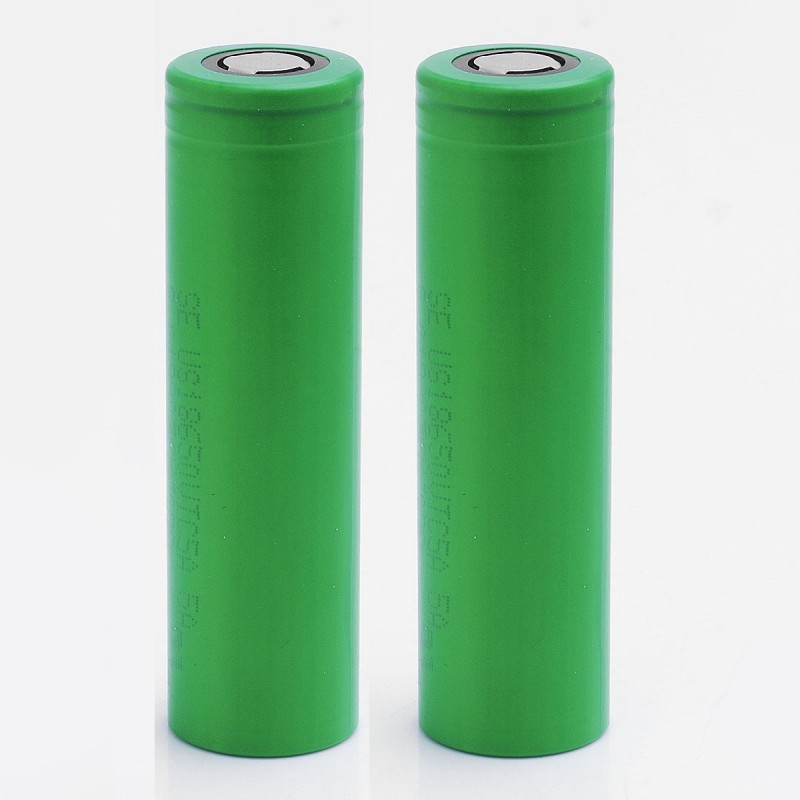

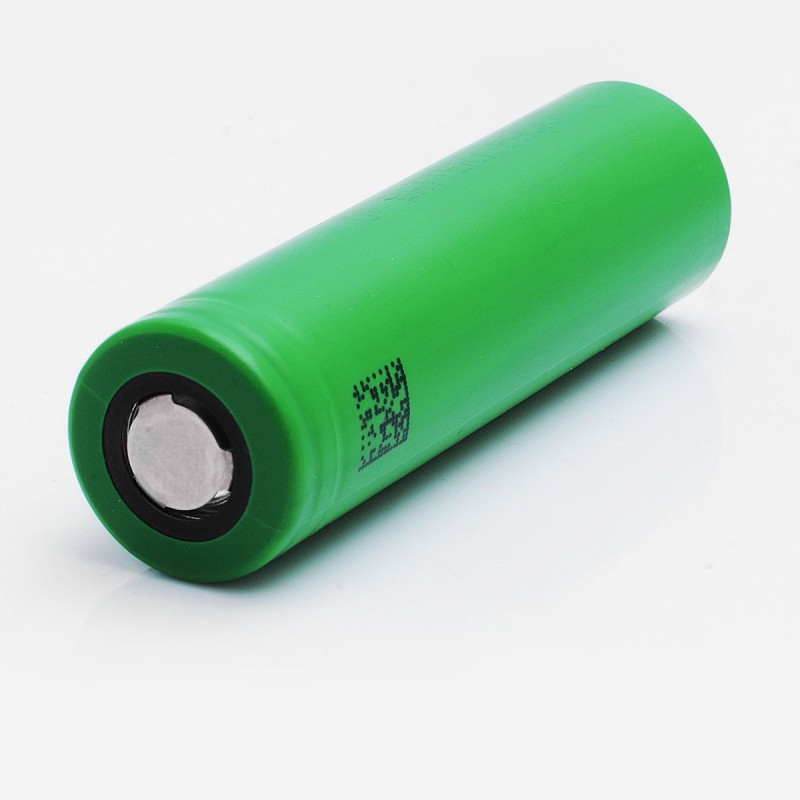

US18650VTC5A 2600mAh High Drain Li-Ion Battery Previously manufactured by Sony Energy – Murata purchased Sony’s battery division in 2017. Newer production of cells is marked Murata and not SE (Sony Energy). Older cells will show SE printing.
Official specifications for US18650VTC5A 2600mA High Drain Li-Ion Battery:
Nominal capacity: 2600mAh
Rated capacity: 2500mAh
Maximum continuous discharge current: 35A with 80° cut-off
Nominal voltage: 3.6V
Internal impedance: 13.0mOhm typical at 1kHz
Cycle performance: 300 cycles to 70% with 10A discharges.
Standard charge current: 2.5A
Maximum charge current: 6A
Charge voltage: 4.2V +/-0.05V
Datasheet for US18650VTC5A 2600mA High Drain Li-Ion Battery
Lot 1-10 Sony VTC5A 18650 Flat Top 2500mAh 35A Rechargeable Battery – USA Seller | eBay
